Autoclave

Contact：Hu, Youtian
Tel：34207545

MORE <p><strong>Model：STERIVAP SP 6612-1</strong></p> <p> </p> <p><strong>Specifications:</strong></p> <p>1. Working environment and power supply: room temperature 5-40℃, power supply 400V (±10%).</p> <p>2. built-in steam generator, generating no more than 0.05 MPa of steam fluctuation.</p> <p>3. with chamber volume 610L. The inner chamber is equipped with two high precision temperature sensors with accuracy of (±0.1 ℃) and two high precision pressure sensors with accuracy of (±5 Kpa).</p> <p>4. Built-in two-stage water circulation vacuum pump, the absolute pressure of the chamber is 33 mbar at minimum vacuum.</p> <p>5. unique, patented, double chamber jacket.</p> <p>6. microprocessor control systems 7. rapid cooling system.</p> <p> </p> <p><strong>Applications:</strong></p> <p>It is applicable for sterilization of various articles. Including: tools, clothing, cages, bedding, liquid medium culture, agar, yeast, glass products, filters, animal corpses, waste (general or high-risk), etc.</p>

Centrifuge

Contact：Li, Xiaolin
Tel：34206535

MORE <p><strong>Model：HITACHI CR21GIII</strong></p> <p> </p> <p><strong>Specifications:</strong></p> <p>1.Max Speed: 2,1000rpm</p> <p>2.Max g: ≥50300xg</p> <p>3.Max Volume: 1000ml×4</p> <p>4. Acceleration/Deceleration : 9/10 levels</p> <p>5.Non-contact imbalance detection</p> <p>6.automatic rotor temperature compensation</p> <p>7.temperature: -20℃-40℃, precooling function</p> <p>8.Optional rotor with continuous flow and ultra light carbon fiber</p> <p> </p> <p><strong>Applications:</strong></p> <p>Bacteria separation, protein precipitation, nuclear acid extraction, blood serum processing.etc.</p>

Ultra-Centrifuge Beckman

Contact：Li, Xiaolin
Tel：34206535

MORE <p><strong>Model：Beckman Optima L-80XP</strong></p> <p> </p> <p><strong>Specifications:</strong></p> <p>1.touch screen, easier to use</p> <p>2.Expert software, optimize ESP high efficiency decanting program</p> <p>3.Plug-in horizontal rotor, safer to use</p> <p>4.Max speed: 80000rpm</p> <p>5.Max g: 802400g</p> <p>6.temperature: 0-40℃, ±0.3 ℃</p> <p>7. max vacuum: ≤5micro</p> <p>8.Max volume: 1500ml</p> <p> </p> <p><strong>Applications:</strong></p> <p>Isolation of Viruses and subcellular components</p> <p>Gradient seperations of proteins</p> <p>Lipoprotein separation</p> <p>RNA gradient precipitation</p> <p>Purification of plasmid DNA</p>

lyophilizer

Contact：Li, Xiaolin
Tel：34206535

MORE <p><strong>Model: Germany  Christ Beta 2-8 LD-PLUS </strong></p> <p> </p> <p><strong>Specifications:</strong></p> <p>1. Ice condenser capacity: 8kg</p> <p>2. Ice condenser performance: 6kg / 24h</p> <p>3.Power: 2 x 550W（3/4HP）</p> <p>4. Ice condenser temerature: -85℃ shelf temperature: -50℃</p> <p>5.Max connections: 12</p> <p>6. LD plus ambient temperature: +10℃ ~ +32℃</p> <p> </p> <p><strong>Applications:</strong></p> <p>It is widely used in solvent removal of concentrated syntheses of DNA/RNA, nucleosides, proteins, drugs, metabolites, enzymes or similar samples. It has the characteristics of high concentration efficiency and high sample activity retention.</p>

Fluorescence spectrophotometer

Contact：Li, Xiaolin
Tel：34206535

MORE <p><strong>Model：NanoDrop 3300</strong></p> <p> </p> <p><strong>Specifications：</strong></p> <p>1、Patented surface tension techonology;  </p> <p>2、1~2µL sample volume;  </p> <p>3、The detection limit is as low as 1 fmol fluorescein ;  </p> <p>4、The fluorescence range is over 104;  </p> <p>5、Three sets of LED cover the whole spectrum;  </p> <p>6、2~10s detection time;  </p> <p>7、The detection wavelength ranges from 400~750nm</p> <p> </p> <p><strong>Applications：</strong></p> <p>The concentration of DNA and protein is determined by fluorescence analysis.  It can measure the amount of samples as low as 1ul, and can measure the multiple emission characteristics of a single sample through exciting several fluorescent groups at the same time. It can be widely used in quantitative analysis of  necleic acids, proteins, MicroArray, protein chips and fluorescence spectrometic substances.</p>

RealTime PCR Apparatus-thermo

Contact：Li, Xiaolin
Tel：34206535

MORE <p><strong>Model： ABI 7900</strong></p> <p> </p> <p><strong>Specifications：</strong></p> <p>1. reaction plate: 96-well format, 384 well format</p> <p>2. reaction volume: 20-100ul</p> <p>3. dynamic range: 9 order dynamic range</p> <p>4. optical system: long life 488nm argon ion laser excitation, CCD phase can be used for 500-650nm continuous wavelength detection</p> <p>5. detection method: Primer-Probe Detection, SYBR</p> <p>6. reaction speed: 40 cycles of PCR takes less than 2 hours</p> <p>7. Heating or cooling ramp: Fast: > 3.0 ℃／s Standard: >1.6 ℃／s</p> <p>8. Temperature range: 4℃-100℃</p> <p> </p> <p><strong>Applications:</strong></p> <p>It is mainly usd for quantitative analysis of gene expression from mid to high throughput and polymorphism analysis of SNP.</p>

PCR-PLUS2 (RealTime PCR Apparatus)

Contact：Li, Xiaolin
Tel：34206535

MORE <p><strong>Model： ABI stepone plus</strong></p> <p> </p> <p><strong>Specifications：</strong></p> <p>1. Reaction plate: 96-well format, 0.1ml single tube or octave tube</p> <p>2. Reaction volume: 10-30ul</p> <p>3. Dynamic range: 9 order dynamic range</p> <p>4. Optical system: 4 filters, blue LED excitation light source</p> <p>5. Detection method: Primer-Probe Detection, SYBR</p> <p>6. Reaction speed: Fast：40 cycles of PCR reaction took less than 40 minutes; Standard: 40 cycles of PCR takes less than 2 hours</p> <p>7. Heating or cooling ramp: Fast: > 2.2℃／s Standard: >1.6℃／s</p> <p>8. Temperature range: 4℃-100℃</p> <p> </p> <p><strong>Applications:</strong></p> <p>It is mainly used in relative quantitative analysis of gene expression, absolute quantitative analysis of pathogens, SNP genotype analysis of nucleic aicd sequence after qualitative PCR amplification and positive/negative results determination based on positive internal control.</p>

Infrared imaging system

Contact：Zhang Man
Tel：34206535

MORE <p><strong>Model：Odyssey 9120</strong></p> <p> </p> <p><strong>Specifications：</strong></p> <p>1、Laser: excitation wavelength is 680nm、780nm, emission wavelength is 720nm、820nm, respectively;</p> <p>2、Detector：two independent avalanche photodiodes;</p> <p>3、high sensitivity: Southern Blots: Western blots: Pick level</p> <p>4、Scanning speed: 5-40cm/s;</p> <p>5、Scanning resolution: 21-337 microns（adjustable）；</p> <p>6、Detection range: scanning imaging and analysis can be performed on membrane,gel,microporous plate and protein in small animals.</p> <p> </p> <p><strong>Applications：</strong></p> <p>1、gel analysis of Coomassie leucocyanin and in-cell Western analysis of microporous plate;</p> <p>2、Gel Western Blots assay and protein nucleic-acid interaction assay;</p> <p>3、BCA library, dual color Western Blots analysis, CDNA microarray, protein phosphorylation dual color analysis.</p>

Multimode microplate reader

Contact：Hu, Youtian
Tel：34207545

MORE <p><strong>Model：Biotek Synergy 2</strong></p> <p> </p> <p><strong>Specifications：</strong></p> <p>1、absorption wavelength range：200-999nm, increasing and ajustable by 1nm, monochromator bandwidth 2.4nm;    </p> <p>2、OD repeatability of absorption light:0.5%±0.005, accuracy 1%±0.01;    </p> <p>3、Linear range:fluorescence 0-99,999RFU; chemiluminescence: 0-6，500，000RLU; absorption light: 0-4OD;    </p> <p>4、Fluorescence detection sensitivity: 1pM（96 well plate）， 1pM（384 hole plate），8pM （1536 hole plate）;    </p> <p>5、Luminescenct detection sensitivity:10amol/well ATP （96 well plate）;    </p> <p>6、Fluorescence polarization sensitivity: 3mP,1nM fluorescein    </p> <p>7、cross interference between light-emitting holes: ≤0.025% ;  </p> <p>8、detection time: 96 hole plate ≤12s，384 hole ≤22s，1536 hole ≤43s</p> <p> </p> <p><strong>Applications：</strong></p> <p> 1、 Proteomic research: protein protein interaction, enzyme kinetics detection, enzyme activity correlation analysis, structure study;    </p> <p>2、Functional genomics research: light absoprtion quantification of nucleic acids/proteins;    </p> <p>3、Cytological study: determination of cell concentration and bacteria growth density, cell proliferation,cytotoxity, cell migration, apoptosis, cell transfection studies, etc    </p> <p>4、Drug research and screening</p>

High performance computing cluster

Contact：Wang, Jingfang
Tel：34207344

MORE <p><strong>Model：large memory computing node HP L580 G7, etc.</strong></p> <p> </p> <p><strong>Specifications：</strong></p> <p>For now shanghai centre for  system biomedicine has two sets of high-performance computing clusters, providing  computing  power of 1152 cpu cores and 12 Tesla M2050 GPU computing units, with a total computing peak of  above12 trillion times per second. At the same time, 1 TB memory fat node and two 512 GB memory fat nodes are configured for high-throughput data processing and calculation in bioinformatics. The total capacity of storage system  is over 80TB, and 16TB backup server is configured.  </p> <p> </p> <p><strong>Applications：</strong></p> <p>1、High-throughput bioinformatics data processing;  </p> <p>2、large scale biological network modeling and dynamic simulations;  </p> <p>3、protein structure dynamics simulation, through a large number of parallel computing to obtain dynamic behavior of protein under a certain enviroment.</p>

Rotary microtome

Contact：Chen, Junsong
Tel：34208668

MORE <p><strong>Model： Leica RM2235</strong></p> <p> </p> <p><strong>Specifications:</strong></p> <p>The vertical stroke is up to 70mm, precise location system, maximum processing sample is 46mm*66m*10mm, hand wheel is adjustable</p> <p> </p> <p><strong>Applications:</strong></p> <p>Paraffin section of  pathological tissue sample</p>

Paraffin embedding station

Contact：Chen, Junsong
Tel：34208668

MORE <p><strong>Model： Leica  EG1150</strong></p> <p> </p> <p><strong>Specifications:</strong></p> <p>It can store 3L paraffin,  can hold 70 sample embedding boxes, and the temperature can be from 55℃-70℃</p> <p> </p> <p><strong>Applications:</strong></p> <p>Paraffin embedding of pathological tissue samples, quick cooling point area is more than 6.5cm*6.5cm, which can meet the embedding of super large embedding box. The  separated independent cooling platform, with constant temperature of -5℃,  can put 70 samples.</p>

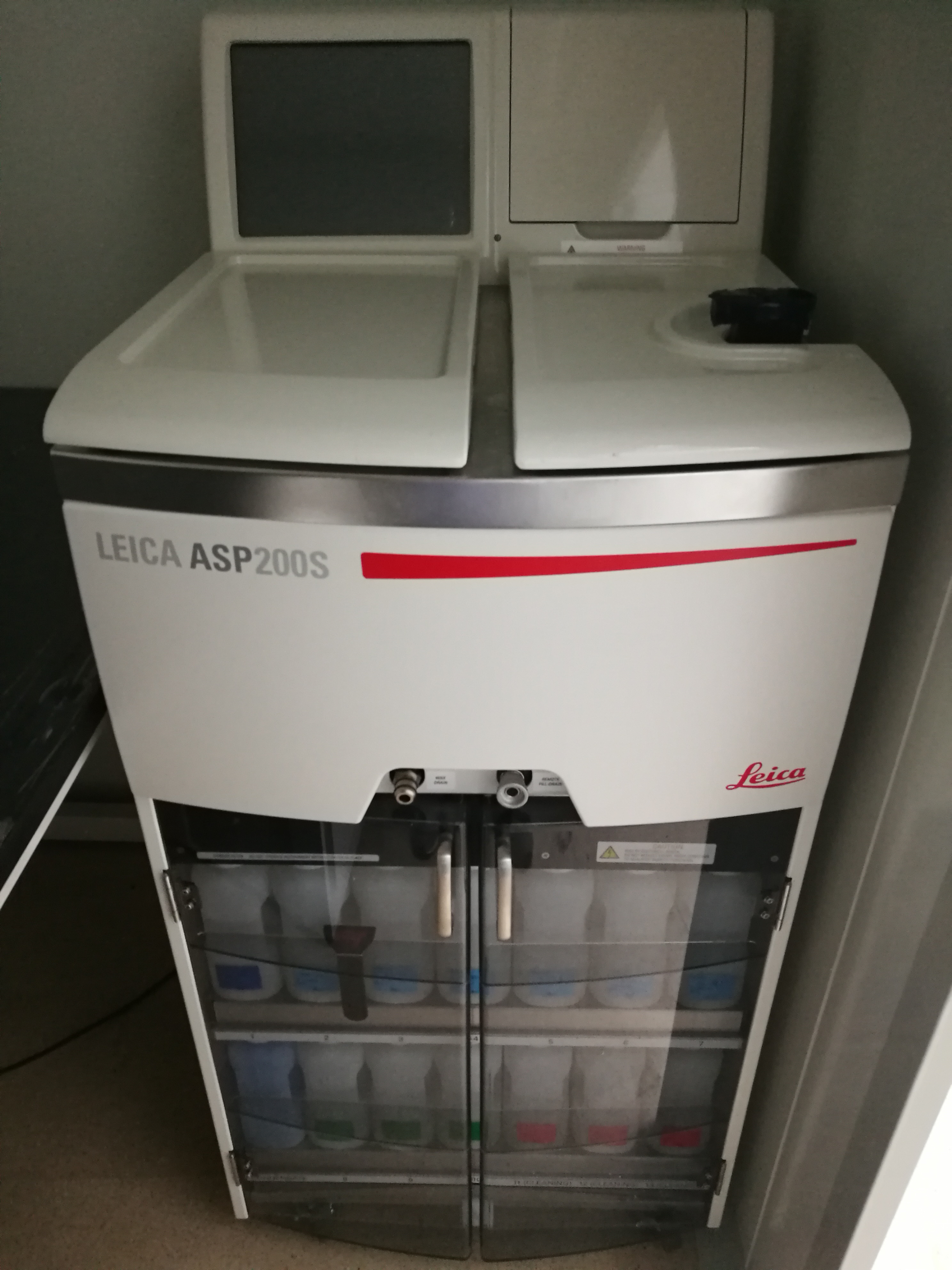

Tissue dehydrating machine

Contact：Chen, Junsong
Tel：34208668

MORE <p><strong>Model： Leica  ASP200</strong></p> <p> </p> <p><strong>Specifications:</strong></p> <p>It can be equipped with 300 metal sample boxes or 252 microwave heating sample boxes</p> <p> </p> <p><strong>Applications:</strong></p> <p>Dehydration of sample tissue</p>

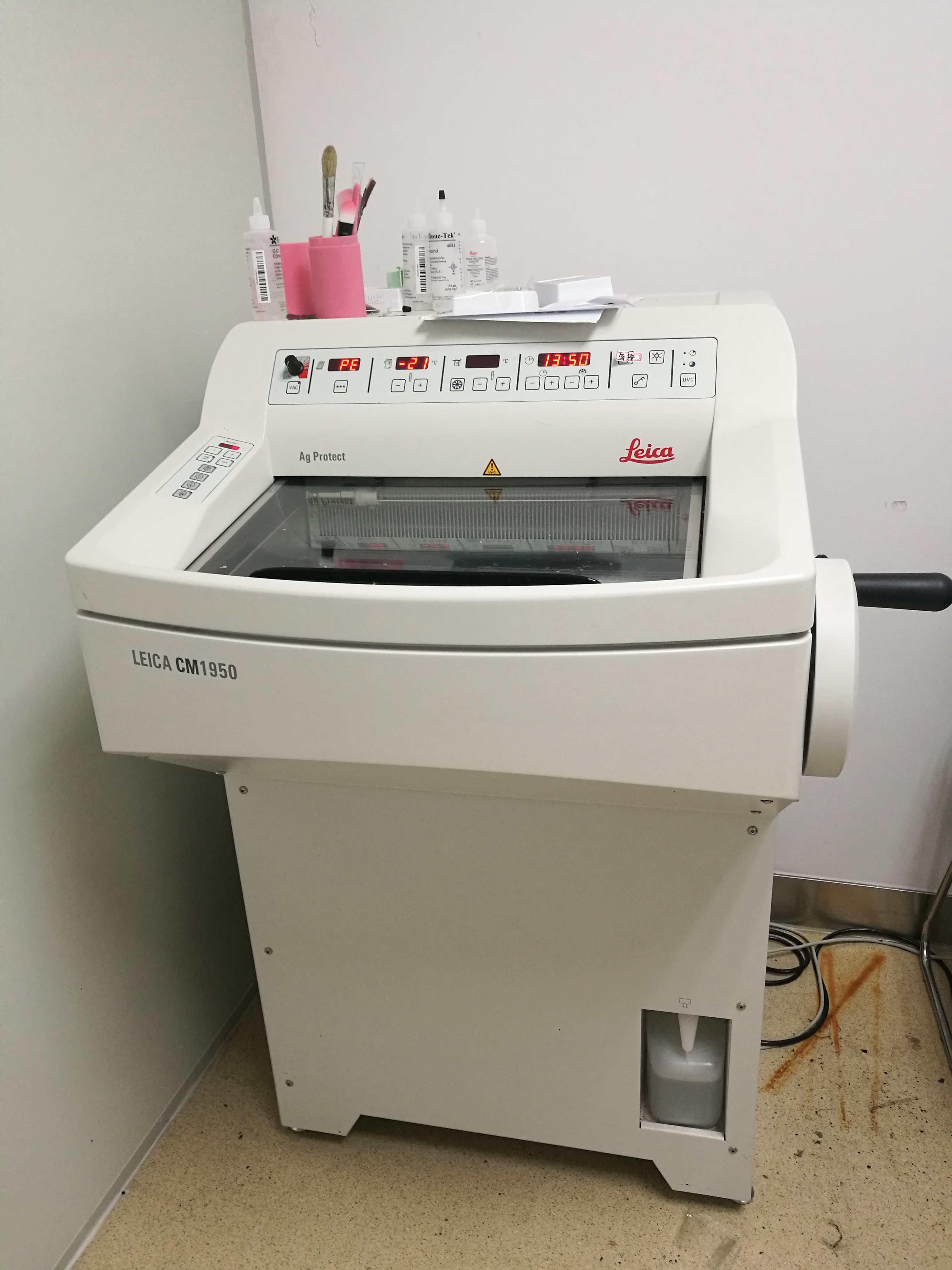

Freezing microtome

Contact：Chen, Junsong
Tel：34208668

MORE <p><strong>Model： Leica CM1950</strong></p> <p> </p> <p><strong>Specifications：</strong></p> <p>AgProtect，UVC  disinfection</p> <p> </p> <p><strong>Applications:</strong></p> <p>Cryosection of fresh tissue</p>

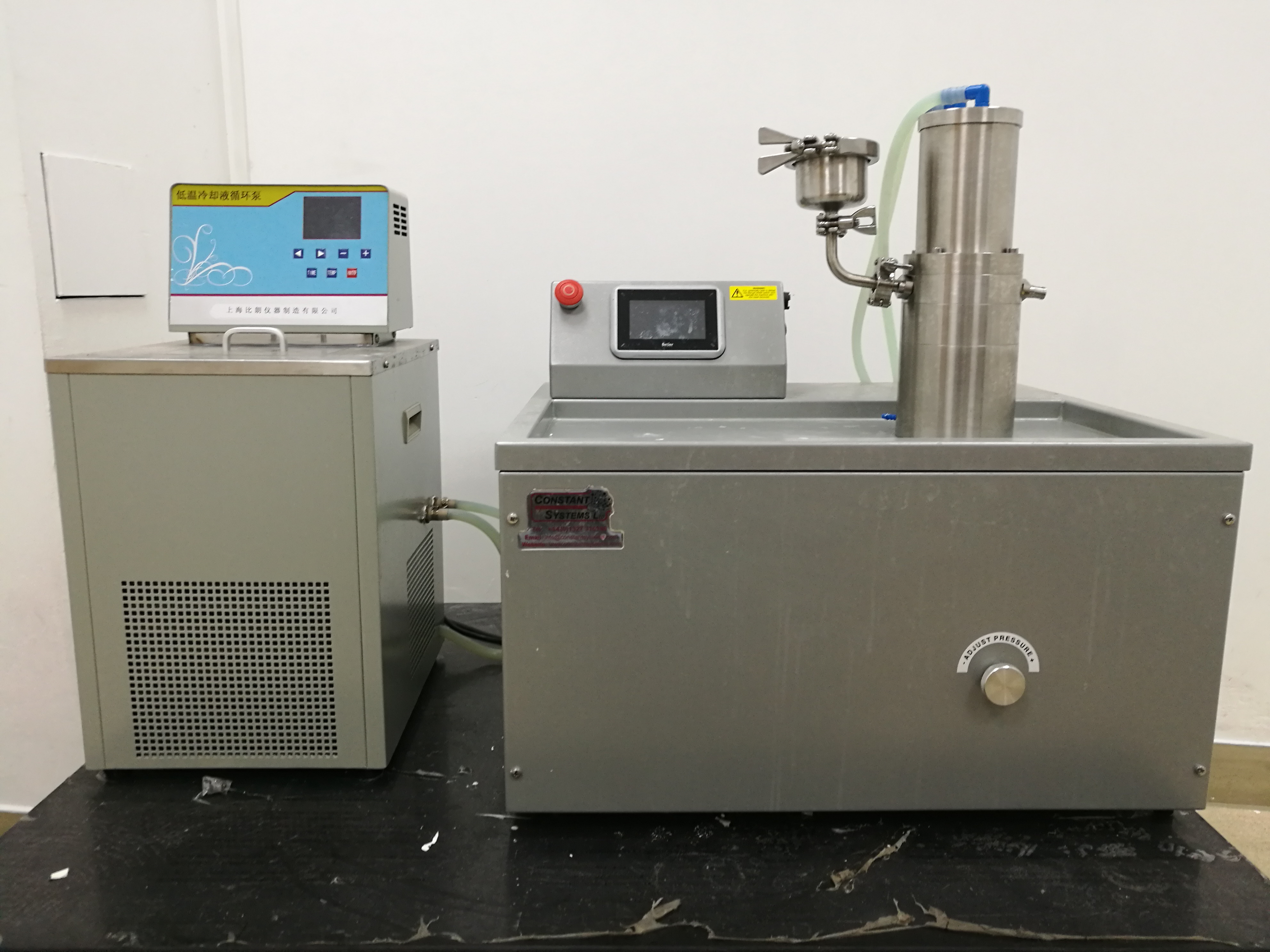

High pressure cell disruptor

Contact：Hu, Youtian
Tel：34207545

MORE <p><strong>Model：  Constant System TS 0.75</strong></p> <p> </p> <p><strong>Specifications：</strong></p> <p>1、pressure: no less than 35Kpsi(2400 bar), continously adjustable;</p> <p>2、cooling device: the crushing head designed for cooling jacket can be well controlled;</p> <p>3、pressure generating mode: high pressure generated by hydraulic system, fixed nozzle design, provide stable working pressure and strong reproducibility;</p> <p>4、dead volume: it should be less than 1ml, no limitation of the minimum sample handling volume</p> <p>5、touch screen control crushing cycle, the machine will be automatically stopped after treatment</p> <p><strong>Applications：</strong></p> <p>It can be applied in cell disruption, protein and DNA extraction, enzyme release, DNA manipulation selective disruption, single cell seperation, tissue disruption, etc.</p>
